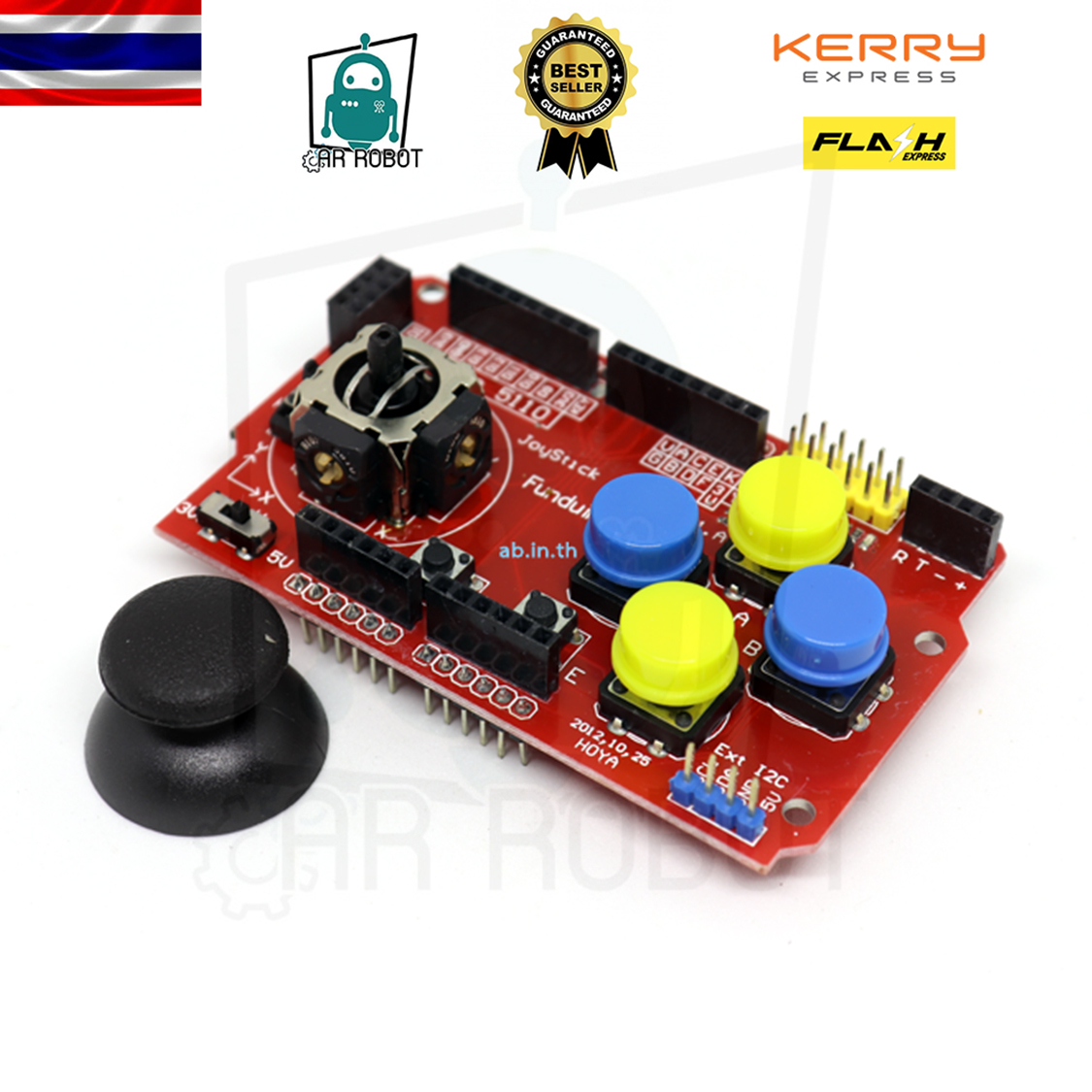

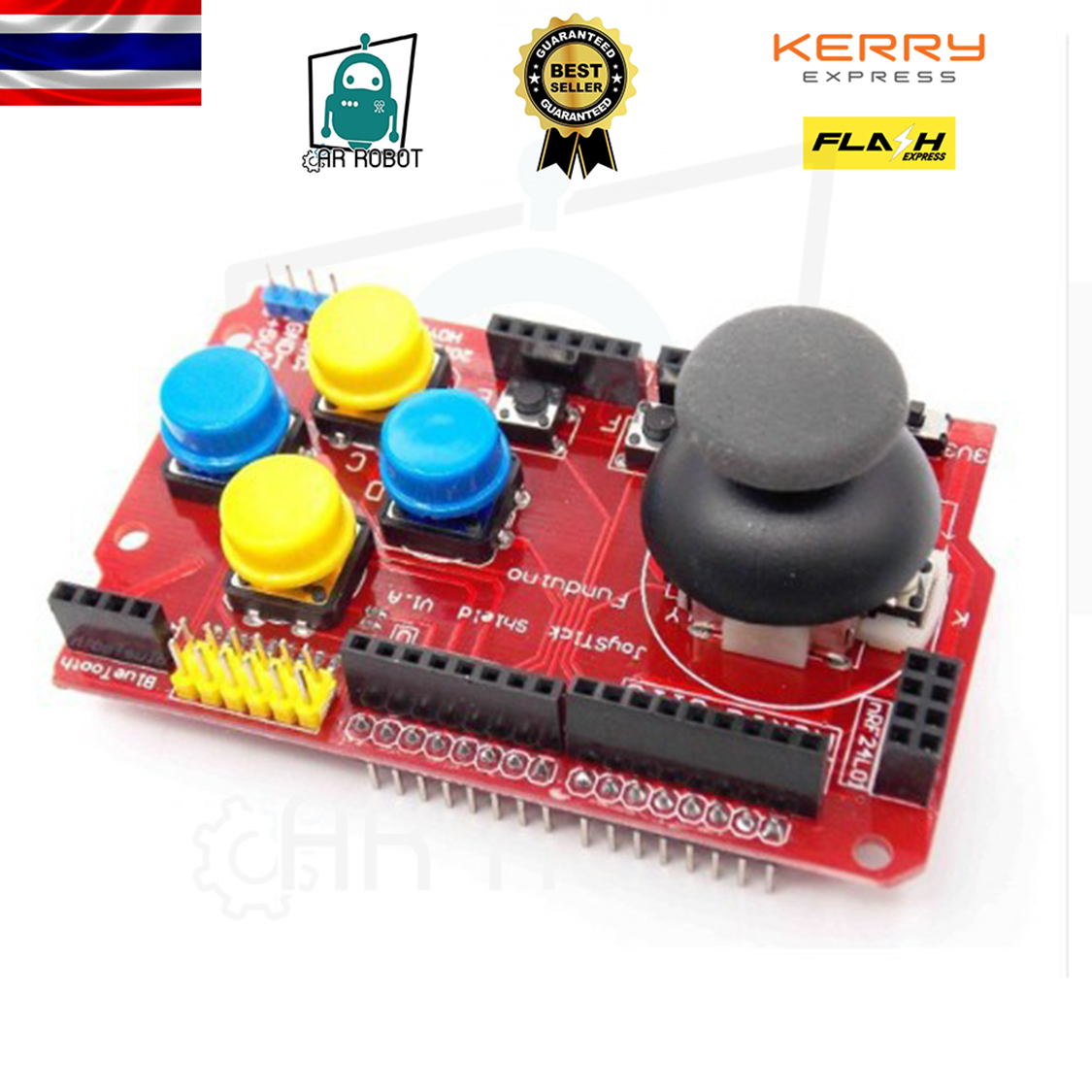

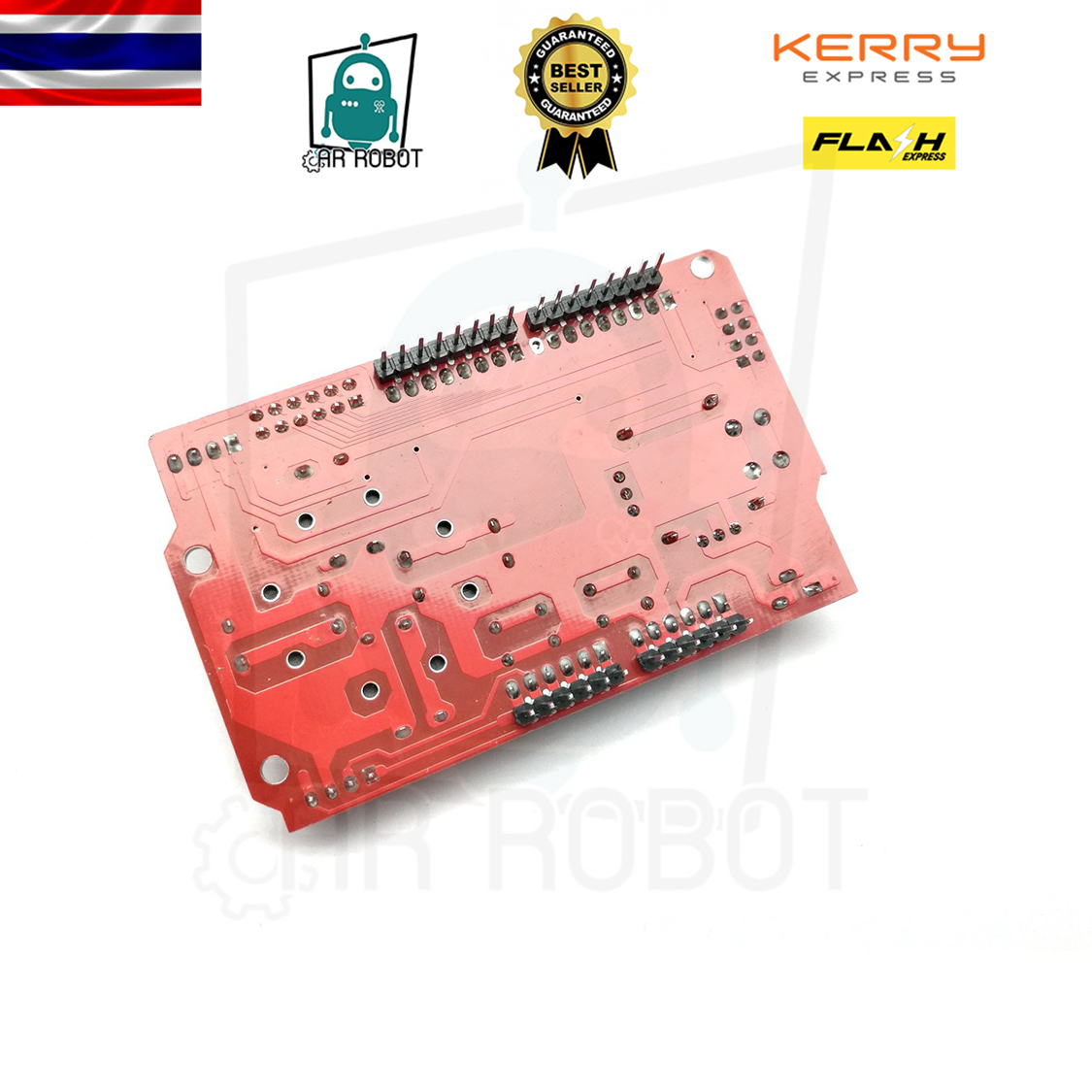

JoyStick Shield expansion board for arduino

JoyStick Shield expansion board for arduino

จอยสติกสำหรับ Arduino แค่เสียบลงไป ก็สมารถใช้ Arduino ควบคุมเป็นแบบ JoyStick ได้แล้ว  ใช้งานง่ายเหมือนเป็นสวิตช์ทั่ว ๆ ไป พร้อมช่องรองรับการเชื่อมต่อแบบไร้สาย NRF24L01 และจอแสดงผล Nokia 5110 LCD

รายละเอียด JoyStick Shield expansion board for arduino

• Add nRF24L01 RF interface
• Add Nokia 5110 LCD interface, so very easy to game development.
• Adding a Bluetooth module interface, convenient Bluetooth wireless serial communication.
• Add I2C communication interface, easy connectivity to I2C devices
• Meanwhile, JoyStick Shield with a cross PS2 joystick with buttons, there are four round buttons, 2 small buttons.
• Provides for the Arduino joystick and buttons input expansion. Onboard switches can switch between 3.3V and 5V, can use this model for other 3.3V microcontroller platforms, such as STM32.

Map ขา nRF24L01

MOSI = D11
CSN = D10
VCC = 3V
MISO = D12
SCK = D13
CE = D9

ตัวอย่างโคด Arduino JoyStick Shield expansion board for arduino

const byte PIN_ANALOG_X = 0;
const byte PIN_ANALOG_Y = 1;
const byte PIN_A = 2;
const byte PIN_B = 3;
const byte PIN_C = 4;
const byte PIN_D = 5;
const byte PIN_E = 6;
const byte PIN_F = 7;
const byte PIN_K = 8;


void setup() {
  Serial.begin(9600);

  pinMode(PIN_A, INPUT);
  digitalWrite(PIN_A, HIGH);

  pinMode(PIN_B, INPUT);
  digitalWrite(PIN_B, HIGH);

  pinMode(PIN_C, INPUT);
  digitalWrite(PIN_C, HIGH);

  pinMode(PIN_D, INPUT);
  digitalWrite(PIN_D, HIGH);

  pinMode(PIN_E, INPUT);
  digitalWrite(PIN_E, HIGH);

  pinMode(PIN_F, INPUT);
  digitalWrite(PIN_F, HIGH);

  pinMode(PIN_K, INPUT);
  digitalWrite(PIN_K, HIGH);
}

void loop() {
  Serial.print("x:");
  Serial.print(analogRead(PIN_ANALOG_X));
  Serial.print(" ");

  Serial.print("y:");
  Serial.print(analogRead(PIN_ANALOG_Y));
  Serial.print(" ");

  Serial.print("A:");
  Serial.print(digitalRead(PIN_A));
  Serial.print(" ");

  Serial.print("B:");
  Serial.print(digitalRead(PIN_B));
  Serial.print(" ");

  Serial.print("C:");
  Serial.print(digitalRead(PIN_C));
  Serial.print(" ");

  Serial.print("D:");
  Serial.print(digitalRead(PIN_D));
  Serial.print(" ");

  Serial.print("E:");
  Serial.print(digitalRead(PIN_E));
  Serial.print(" ");

  Serial.print("F:");
  Serial.print(digitalRead(PIN_F));
  Serial.print(" ");

  Serial.print("K:");
  Serial.print(digitalRead(PIN_K));
  Serial.print(" ");


  Serial.println();
}
