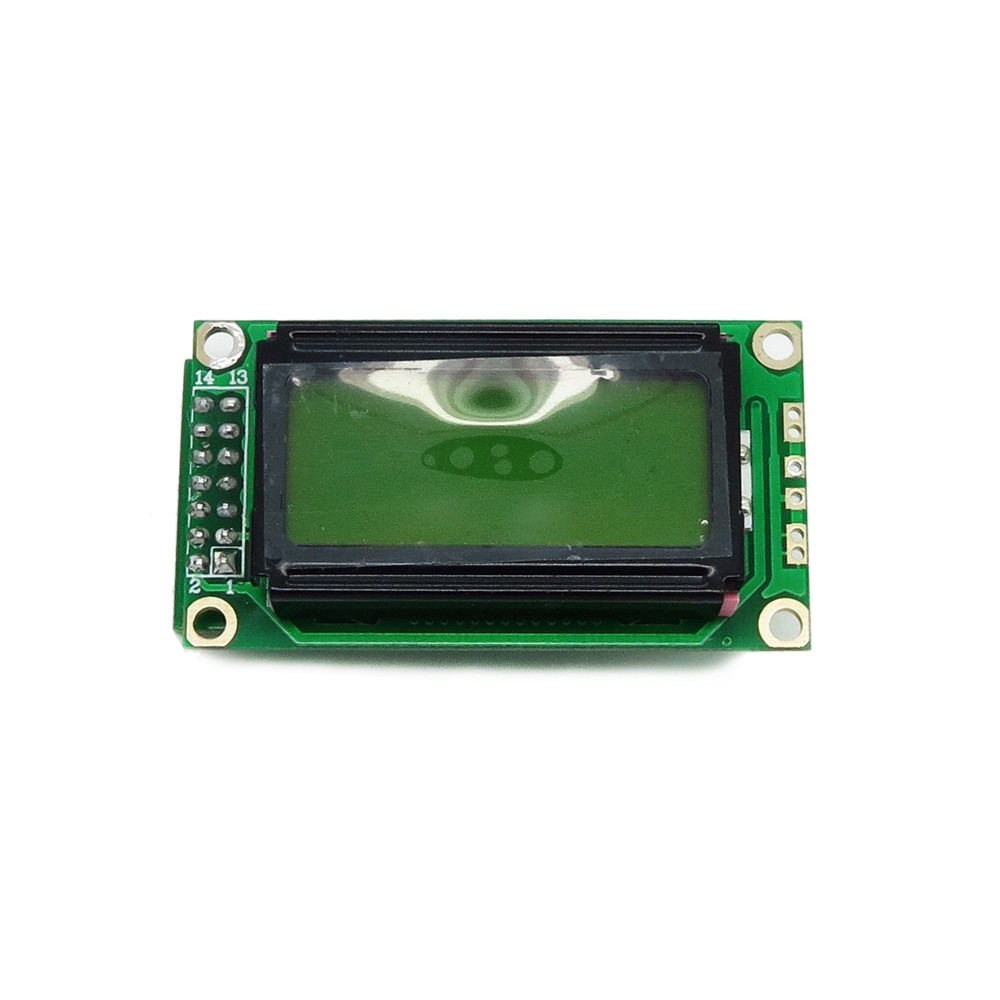

0802 LCD (Yello Screen) 08x2 LCD with backlight of the LCD screen

0802 LCD (Yello Screen) 08x2 LCD with backlight of the LCD screen

จอ LCD 0802 ขนาด 8 ตัวอักษร 2 บรรทัด สีน้ำเหลือง

An 8x2 dot matrix Character LCD Module display in Negative Blue LCD Mode, Six O'clock viewing direction, Build-in White LED Backlight.  The interface type is Parallel. This is an ROHS Compliant product manufactured with ISO standards and procedures.

Features :

• Negative Yellow Color
• Operating Temp: -20°C to 70°C
• Storage Temp: -30°C to 80°C
• Transmissive Polarizer
• White LED Backlight
• Characters Displayed x Lines    8 x 2
• LCD Mode    STN Negative Blue
• Polarizer Type    Transflective
• Module Size WxHxT max(mm) 58.0 x 32.0 x 14.0
• View Area WxH (mm)    38.0 x 16.0
• Character Size WxH (mm)    2.96 x 5.56
• Backlight White LED
• Interface Type  Parallel
